9092B

Orig. Völkel

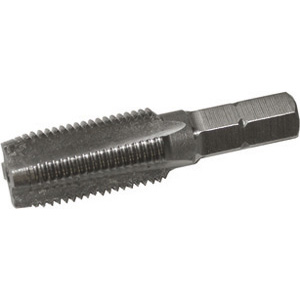

TAPS FOR USE WITH SCREWDRIVERS AND BY HAND

Short type, 1/4 - C 6.3 hex drive suitable for use with screwers, drills, battery or hand-operated.
HSSG.
Right-hand use.

METRIC ISO FINE THREAD - According to DIN 13 (DIN 2181).

Available on request other Ø and pitches (from Ø 3 to 10).

	Cod. Art.	Cad.	Cod. Prod.	Ø mm	Pitch mm	Overall length mm	Thread length mm	Peso Art
(*)	9092B 4 0.5	€ 0	677	4	0,5	35	12	0.006
(*)	9092B 5 0.5	€ 0	677	5	0,5	36	15	0.007
(*)	9092B 6 0.75	€ 0	677	6	0,75	39	18	0.008
(*)	9092B 7 0.75	€ 0	677	7	0,75	37,5	16	0.008
(*)	9092B 8 0.5	€ 0	677	8	0,5	40	19	0.01
(*)	9092B 8 0.75	€ 0	677	8	0,75	40	19	0.01
(*)	9092B 8 1	€ 0	677	8	1	40	19	0.01
(*)	9092B 9 1	€ 0	677	9	1	40,5	18	0.011
(*)	9092B 10 1	€ 0	677	10	1	41	21	0.013
(*)	9092B 10 1.25	€ 0	677	10	1,25	41	21	0.013
