9806

Prod. SCU

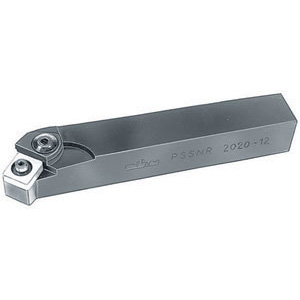

INSERTS HOLDER FOR TURNING WITH MECHANICAL FIXING

holder for cutting bit tools

In treated steel, pin fixing system, suitable for turning and copying.
Excellent tool bit fixing, steady housing and preservation of chip breaker position. Without bits, with screws.

Right-hand, external use.

For inserts see Art. 9828 – 9830.

	Note	Cod. Art.	Cad.	Cod. Prod.	Square stem side mm	Cutting angle degrees	Overall length mm	Head width and length mm	Peso Art	QTAMIN
(*)		9806 20	€ 0		20	45	125	22x25	0.385	0
(*)		9806 25	€ 0		25	45	150	28x32	0.705	0

Tabelle tecniche (1)
- Tabella tecnica Nr. 1 Durezza degli acciai

9806
