2811

Prod. SCU

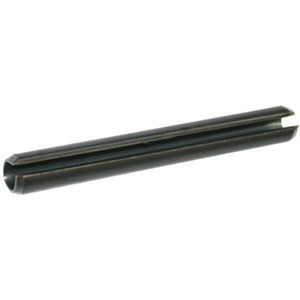

ELASTIC PINS

elastic pins

ISO 8752 | DIN 1481

Model according to ISO 8752 DIN 1481, burnished finish.
In spring special steel C70-55 Si7.
Beveled extremities in dimensions up to Ø 8mm.
Only one beveled extremities in dimensions from Ø 10mm.
Mentioned packing units are not sold separately. Product in set see Art.2810 Z.

FITTING TOLERANCE RANGE:
nominal Ø of pin from 1 to 3mm = tolerance (H12) mm +0.10
nominal Ø of pin from 3.5 to 6mm = tolerance (H12) mm +0.12
nominal Ø of pin from 7 to 10mm = tolerance (H12) mm +0.15
nominal Ø of pin 12mm = tolerance (H12) m

	Note	Cod. Art.	La conf.	Ø for length mm	Indivisible pck. Pcs	Peso Art
(*)		2811 1 4	€ 0	1x4	1000	0.016
(*)		2811 1 5	€ 0	1x5	1000	0.02
(*)		2811 1 6	€ 0	1x6	1000	0.024
(*)		2811 1 8	€ 0	1x8	1000	0.032
(*)		2811 1 10	€ 0	1x10	1000	0.04
(*)		2811 1 12	€ 0	1x12	1000	0.048
(*)		2811 1 14	€ 0	1x14	1000	0.052
(*)		2811 1 16	€ 0	1x16	1000	0.06
(*)		2811 1 20	€ 0	1x20	1000	0.076
(*)		2811 1.5 6	€ 0	1,5x6	1000	0.036
(*)		2811 1.5 8	€ 0	1,5x8	1000	0.046
(*)		2811 1.5 10	€ 0	1,5x10	1000	0.056
(*)		2811 1.5 12	€ 0	1,5x12	1000	0.066
(*)		2811 1.5 14	€ 0	1,5x14	1000	0.076
(*)		2811 1.5 16	€ 0	1,5x16	1000	0.086
(*)		2811 1.5 20	€ 0	1,5x20	1000	0.1
(*)		2811 2 4	€ 0	2x4	1000	0.03
(*)		2811 2 5	€ 0	2x5	1000	0.036
(*)		2811 2 6	€ 0	2x6	1000	0.042
(*)		2811 2 8	€ 0	2x8	1000	0.054
(*)		2811 2 10	€ 0	2x10	1000	0.066
(*)		2811 2 12	€ 0	2x12	1000	0.078
(*)		2811 2 14	€ 0	2x14	1000	0.09
(*)		2811 2 16	€ 0	2x16	1000	0.11
(*)		2811 2 18	€ 0	2x18	1000	0.13
(*)		2811 2 20	€ 0	2x20	1000	0.15
(*)		2811 2 22	€ 0	2x22	1000	0.18
(*)		2811 2 24	€ 0	2x24	1000	0.2
(*)		2811 2 26	€ 0	2x26	1000	0.22
(*)		2811 2 30	€ 0	2x30	1000	0.24
(*)		2811 2.5 5	€ 0	2,5x5	1000	0.05
(*)		2811 2.5 6	€ 0	2,5x6	1000	0.065
(*)		2811 2.5 8	€ 0	2,5x8	1000	0.09
(*)		2811 2.5 10	€ 0	2,5x10	1000	0.11
(*)		2811 2.5 12	€ 0	2,5x12	1000	0.13
(*)		2811 2.5 14	€ 0	2,5x14	1000	0.15
(*)		2811 2.5 16	€ 0	2,5x16	1000	0.17
(*)		2811 2.5 18	€ 0	2,5x18	1000	0.19
(*)		2811 2.5 20	€ 0	2,5x20	1000	0.21
(*)		2811 2.5 26	€ 0	2,5x26	1000	0.35
(*)		2811 2.5 30	€ 0	2,5x30	1000	0.4
(*)		2811 3 4	€ 0	3x4	1000	0.04
(*)		2811 3 5	€ 0	3x5	1000	0.055
(*)		2811 3 6	€ 0	3x6	1000	0.06
(*)		2811 3 8	€ 0	3x8	1000	0.09
(*)		2811 3 10	€ 0	3x10	1000	0.18
(*)		2811 3 12	€ 0	3x12	1000	0.27
(*)		2811 3 14	€ 0	3x14	1000	0.36
(*)		2811 3 16	€ 0	3x16	1000	0.45
(*)		2811 3 18	€ 0	3x18	1000	0.54
(*)		2811 3 20	€ 0	3x20	1000	0.63
(*)		2811 3 22	€ 0	3x22	1000	0.72
(*)		2811 3 24	€ 0	3x24	1000	0.81
(*)		2811 3 26	€ 0	3x26	1000	1
(*)		2811 3 28	€ 0	3x28	1000	1.1
(*)		2811 3 30	€ 0	3x30	1000	1.2
(*)		2811 3 32	€ 0	3x32	1000	1.3
(*)		2811 3 36	€ 0	3x36	1000	1.4
(*)		2811 3 40	€ 0	3x40	1000	1.5
(*)		2811 3.5 10	€ 0	3,5x10	1000	0.24
(*)		2811 3.5 12	€ 0	3,5x12	1000	0.3
(*)		2811 3.5 16	€ 0	3,5x16	1000	0.4
(*)		2811 3.5 20	€ 0	3,5x20	1000	0.5
(*)		2811 3.5 26	€ 0	3,5x26	1000	0.6
(*)		2811 3.5 30	€ 0	3,5x30	1000	0.915
(*)		2811 3.5 36	€ 0	3,5x36	1000	1.4
(*)		2811 3.5 40	€ 0	3,5x40	1000	1.885
(*)		2811 4 6	€ 0	4x6	500	0.163
(*)		2811 4 8	€ 0	4x8	500	0.22
(*)		2811 4 10	€ 0	4x10	500	0.277
(*)		2811 4 12	€ 0	4x12	500	0.334
(*)		2811 4 14	€ 0	4x14	500	0.391
(*)		2811 4 16	€ 0	4x16	500	0.448
(*)		2811 4 18	€ 0	4x18	500	0.505
(*)		2811 4 20	€ 0	4x20	500	0.562
(*)		2811 4 22	€ 0	4x22	500	0.619
(*)		2811 4 24	€ 0	4x24	500	0.676
(*)		2811 4 26	€ 0	4x26	500	0.733
(*)		2811 4 28	€ 0	4x28	500	0.845
(*)		2811 4 30	€ 0	4x30	500	0.907
(*)		2811 4 32	€ 0	4x32	500	0.969
(*)		2811 4 36	€ 0	4x36	500	0.83
(*)		2811 4 40	€ 0	4x40	500	0.96
(*)		2811 4 45	€ 0	4x45	500	1.09
(*)		2811 4 50	€ 0	4x50	500	1.22
(*)		2811 4.5 16	€ 0	4,5x16	500	1.35
(*)		2811 4.5 20	€ 0	4,5x20	500	1.48
(*)		2811 4.5 24	€ 0	4,5x24	500	1.61
(*)		2811 4.5 30	€ 0	4,5x30	500	1.74
(*)		2811 4.5 32	€ 0	4,5x32	500	1.87
(*)		2811 4.5 40	€ 0	4,5x40	500	2
(*)		2811 5 6	€ 0	5x6	500	0.18
(*)		2811 5 10	€ 0	5x10	500	0.21
(*)		2811 5 12	€ 0	5x12	500	0.24
(*)		2811 5 14	€ 0	5x14	500	0.27
(*)		2811 5 16	€ 0	5x16	500	0.3
(*)		2811 5 18	€ 0	5x18	500	0.33
(*)		2811 5 20	€ 0	5x20	500	0.36
(*)		2811 5 22	€ 0	5x22	500	0.39
(*)		2811 5 24	€ 0	5x24	500	0.42
(*)		2811 5 26	€ 0	5x26	500	0.45
(*)		2811 5 30	€ 0	5x30	500	0.48
(*)		2811 5 32	€ 0	5x32	500	0.51
(*)		2811 5 36	€ 0	5x36	500	0.54
(*)		2811 5 40	€ 0	5x40	500	0.57
(*)		2811 5 45	€ 0	5x45	500	0.6
(*)		2811 5 50	€ 0	5x50	250	0.63
(*)		2811 5 55	€ 0	5x55	250	0.66
(*)		2811 5 60	€ 0	5x60	250	0.8
(*)		2811 5 65	€ 0	5x65	250	0.956
(*)		2811 5 70	€ 0	5x70	250	1.054
(*)		2811 5 80	€ 0	5x80	250	1.152
(*)		2811 6 10	€ 0	6x10	500	0.3
(*)		2811 6 12	€ 0	6x12	500	0.47
(*)		2811 6 14	€ 0	6x14	500	0.64
(*)		2811 6 16	€ 0	6x16	500	0.81
(*)		2811 6 18	€ 0	6x18	500	0.98
(*)		2811 6 20	€ 0	6x20	500	1.15
(*)		2811 6 22	€ 0	6x22	500	1.32
(*)		2811 6 24	€ 0	6x24	500	1.49
(*)		2811 6 26	€ 0	6x26	500	1.66
(*)		2811 6 30	€ 0	6x30	500	1.83
(*)		2811 6 32	€ 0	6x32	500	2
(*)		2811 6 36	€ 0	6x36	500	2.328
(*)		2811 6 40	€ 0	6x40	250	1.294
(*)		2811 6 45	€ 0	6x45	250	1.38
(*)		2811 6 50	€ 0	6x50	250	1.466
(*)		2811 6 55	€ 0	6x55	250	1.552
(*)		2811 6 60	€ 0	6x60	250	1.638
(*)		2811 6 65	€ 0	6x65	250	1.724
(*)		2811 6 70	€ 0	6x70	250	1.81
(*)		2811 6 75	€ 0	6x75	250	1.896
(*)		2811 6 80	€ 0	6x80	250	1.982
(*)		2811 6 100	€ 0	6x100	250	2.068
(*)		2811 7 20	€ 0	7x20	500	1.55
(*)		2811 7 26	€ 0	7x26	500	1.64
(*)		2811 7 30	€ 0	7x30	250	1.73
(*)		2811 7 40	€ 0	7x40	250	1.82
(*)		2811 7 50	€ 0	7x50	250	1.91
(*)		2811 7 60	€ 0	7x60	250	2
(*)		2811 8 12	€ 0	8x12	500	1.55
(*)		2811 8 16	€ 0	8x16	500	1.7
(*)		2811 8 20	€ 0	8x20	500	1.85
(*)		2811 8 24	€ 0	8x24	500	2
(*)		2811 8 26	€ 0	8x26	250	2.15
(*)		2811 8 30	€ 0	8x30	250	2.3
(*)		2811 8 32	€ 0	8x32	250	2.51
(*)		2811 8 36	€ 0	8x36	250	2.72
(*)		2811 8 40	€ 0	8x40	250	2.93
(*)		2811 8 45	€ 0	8x45	250	3.14
(*)		2811 8 50	€ 0	8x50	250	3.35
(*)		2811 8 55	€ 0	8x55	250	3.56
(*)		2811 8 60	€ 0	8x60	250	3.77
(*)		2811 8 65	€ 0	8x65	250	4.1
(*)		2811 8 70	€ 0	8x70	250	4.37
(*)		2811 8 80	€ 0	8x80	250	4.524
(*)		2811 8 100	€ 0	8x100	100	2.282
(*)		2811 10 14	€ 0	10x14	500	1.85
(*)		2811 10 16	€ 0	10x16	500	1.98
(*)		2811 10 20	€ 0	10x20	500	2.11
(*)		2811 10 22	€ 0	10x22	500	2.24
(*)		2811 10 24	€ 0	10x24	500	2.37
(*)		2811 10 26	€ 0	10x26	500	2.5
(*)		2811 10 30	€ 0	10x30	500	2.63
(*)		2811 10 32	€ 0	10x32	500	2.76
(*)		2811 10 36	€ 0	10x36	250	2.89
(*)		2811 10 40	€ 0	10x40	250	3.02
(*)		2811 10 45	€ 0	10x45	250	3.15
(*)		2811 10 50	€ 0	10x50	250	3.28
(*)	In eliminazione	2811 10 55	€ 0	10x55	250	3.41
(*)		2811 10 60	€ 0	10x60	200	3.54
(*)	In eliminazione	2811 10 65	€ 0	10x65	200	3.67
(*)		2811 10 70	€ 0	10x70	100	3.8
(*)		2811 10 80	€ 0	10x80	100	3.93
(*)		2811 10 90	€ 0	10x90	100	4.06
(*)		2811 10 100	€ 0	10x100	100	4.19
(*)		2811 12 16	€ 0	12x16	500	1.8
(*)		2811 12 20	€ 0	12x20	500	2
(*)		2811 12 24	€ 0	12x24	250	2.2
(*)		2811 12 30	€ 0	12x30	250	2.4
(*)		2811 12 36	€ 0	12x36	200	2.6
(*)		2811 12 40	€ 0	12x40	200	2.8
(*)		2811 12 45	€ 0	12x45	200	3
(*)		2811 12 50	€ 0	12x50	100	3.2
(*)		2811 12 60	€ 0	12x60	100	3.4
(*)		2811 12 70	€ 0	12x70	100	3.6
(*)		2811 12 80	€ 0	12x80	50	2.191
(*)		2811 12 90	€ 0	12x90	50	2.4
(*)		2811 12 100	€ 0	12x100	50	2.9
(*)		2811 12 120	€ 0	12x120	50	3.275
