914G

Orig. Gedore

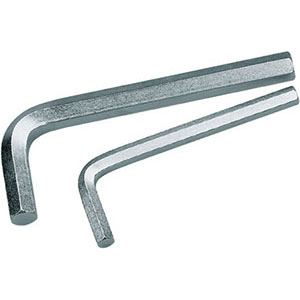

ALLEN HEAD SCREW WRENCHES

DIN ISO 2936 | UNI DIN ISO 2936 | DIN 911

In CHROME VANADIUM steel, chrome plated finish DIN ISO 2936. Rounded off heads for a perfect fit with the screw.

	Cod. Art.	Cad.	Cod. Prod.	Hexagon mm	Overall length mm	For screws Ø mm	Peso Art
(*)	914G 0.7	€ 0	42	0,7	33	-	0.001
(*)	914G 0.9	€ 0	42	0,9	33	-	0.001
(*)	914G 1.3	€ 0	42	1,3	41	-	0.001
(*)	914G 1.5	€ 0	42	1,5	46,5	2	0.001
(*)	914G 2	€ 0	42	2	52	2,5	0.002
(*)	914G 2.5	€ 0	42	2,5	58,5	3	0.003
(*)	914G 3	€ 0	42	3	66	4	0.005
(*)	914G 4	€ 0	42	4	74	5	0.01
(*)	914G 5	€ 0	42	5	85	6	0.018
(*)	914G 5.5	€ 0	42	5,5	85	-	0.021
(*)	914G 6	€ 0	42	6	96	8	0.029
(*)	914G 7	€ 0	42	7	102	9	0.042
(*)	914G 8	€ 0	42	8	108	10	0.058
(*)	914G 9	€ 0	42	9	114	11	0.078
(*)	914G 10	€ 0	42	10	122	12	0.1
(*)	914G 12	€ 0	42	12	137	14	0.163
(*)	914G 14	€ 0	42	14	154	16-18	0.26
(*)	914G 17	€ 0	42	17	177	20-22	0.42
(*)	914G 19	€ 0	42	19	199	24-27	0.6
(*)	914G 22	€ 0	42	22	222	30	0.91
(*)	914G 24	€ 0	42	24	248	33	1.21
(*)	914G 27	€ 0	42	27	277	36	1.711
(*)	914G 30	€ 0	42	30	315	-	2.423
(*)	914G 32	€ 0	42	32	347	48	3.01
